Developer Guide

• Acknowledgements
• Setting up, getting started
• Design
  • Architecture
  • UI component
  • Logic component
  • Model component
  • Storage component
  • Common classes
• Implementation
  • TimePeriod Class
    • Implementation
  • Undo feature
    • Implementation
  • AddApp feature
    • Implementation
    • Design considerations
  • Filter & Sort Feature
    • Implementation
      • Filtering
      • Sorting
  • Delete feature
    • Implementation
    • Design considerations
  • Handle invalid JSON data feature
    • Implementation
    • Design Considerations
  • Ensure no discrepancies between contacts and schedule upon loading ModelManager
    • Implementation
    • Design Considerations
  • Command History Navigation feature
    • Implementation
  • Theme Change feature
    • Implementation
• Documentation, logging, testing, configuration, dev-ops
• Appendix: Requirements
  • Product scope
  • User stories
  • Use cases
  • Non-Functional Requirements
  • Glossary
  • Commands
• Appendix: Instructions for manual testing
  • Launch and shutdown
  • Adding a person
  • Deleting a person
  • Adding an Appointment
  • Deleting an Appointment
  • Editing an Appointment

---

Acknowledgements

• Libraries used: JavaFX, Jackson, JUnit5

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

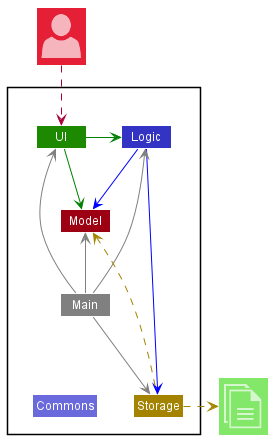

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

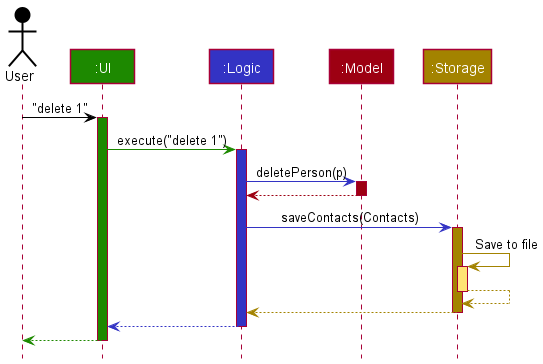

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.)

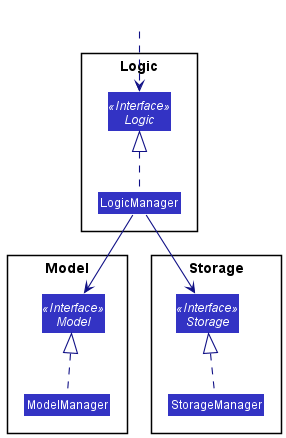

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

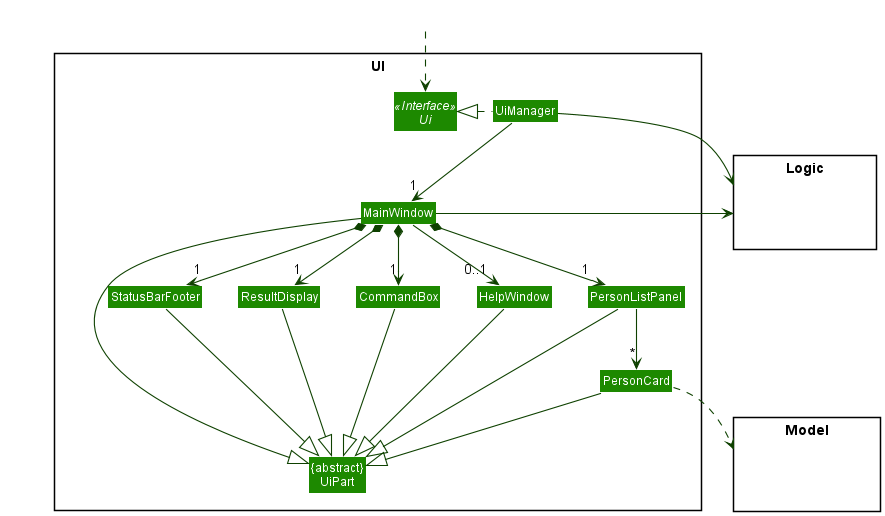

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

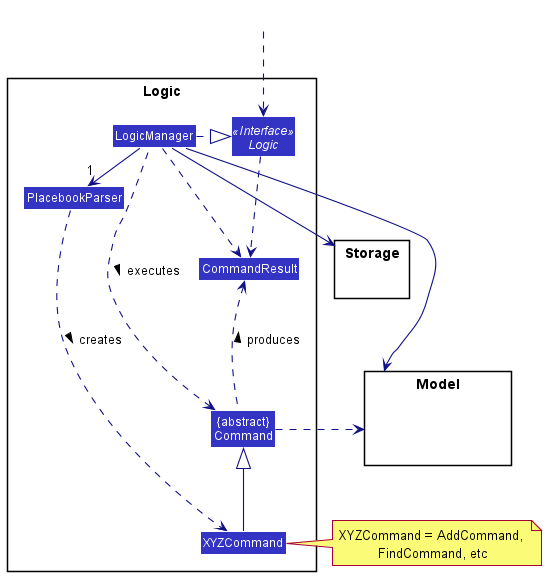

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the PlacebookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

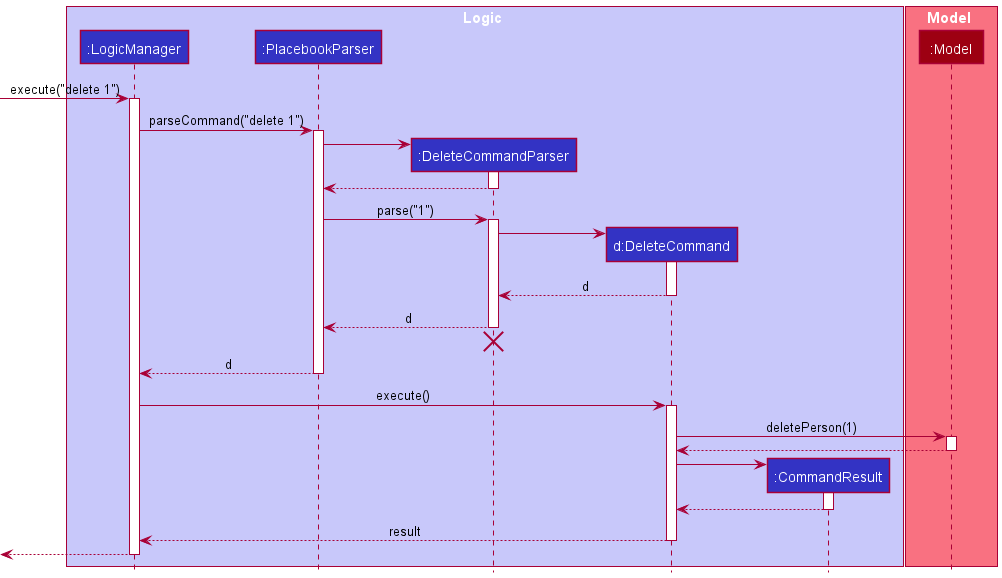

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

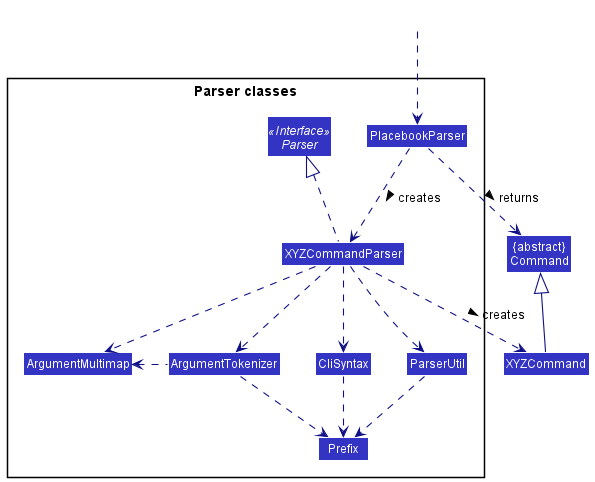

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the PlacebookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the PlacebookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

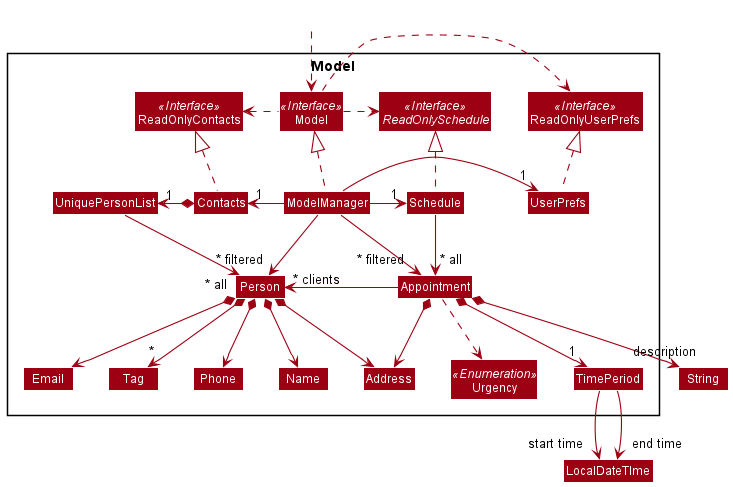

Model component

API : Model.java

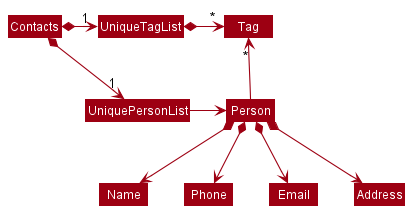

The Model component,

• stores the contact data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• stores appointment data in Appointment objects (which contain UniquePersonList for clients, Address for location, TimePeriod for time period during which the appointment occurs, String for description)
• stores the schedule data i.e., all Appointment objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

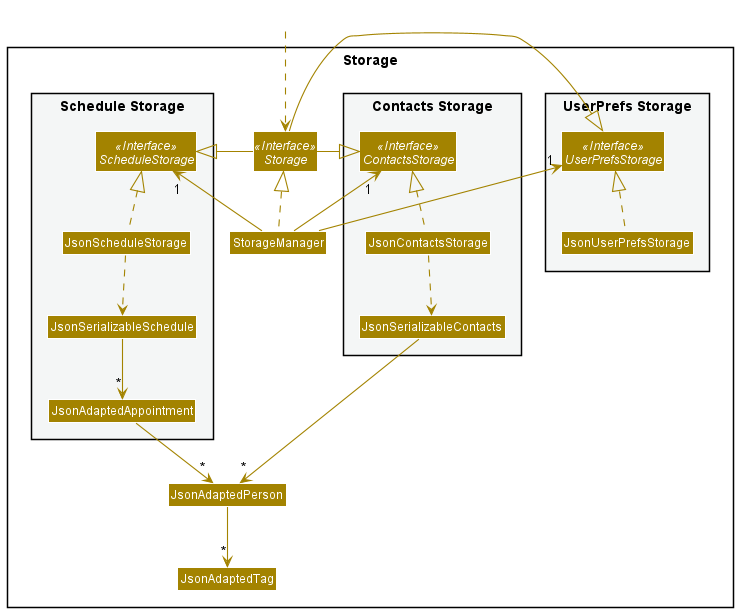

Storage component

API : Storage.java

The Storage component,

• can save contacts data, schedule data and user preference data in json format, and read them back into corresponding objects.
• inherits from both ContactsStorage, ScheduleStorage and UserPrefStorage, which means it can be treated as any (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.placebook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

TimePeriod Class

Implementation

The feature is a variable contained within the Appointment class. TimePeriod tracks the start and end time of the Appointment and contains functions to check if two appointments have clashing TimePeriods and thus cannot both happen. Each Appointment class has a TimePeriod class, which represents the time period during which this appointment occurs. The TimePeriod class provides a function to check whether a time period overlaps with another time period. TimePeriod is also used to calculate the urgency of the appointment, assigning the appointment either High, Medium or Low urgency.

Undo feature

The undo feature allows the users to undo the previous command and go back to the state before executing that command.

Implementation

To implement the undo feature, we need to record the status of PlaceBook after executing a certain command, so that we can restore PlaceBook to its previous status by using that piece of recorded information.

We use a State to describe the status of PlaceBook at a certain time. The State contains a Contacts, a Schedule, a Predicate<Person>, a Predicate<Appointment> and a command word. After every execution of the normal commands, we create a new State instance to record the status of PlaceBook after executing that command. This State instance is like a snapshot of the PlaceBook at a certain moment.

In order to manage the different states, we have a HistoryStates class which has a data structure inside to store all the State. Stack and linked list are usually used to store the history states. In PlaceBook, we use a linked list in HistoryStates. After the execution of a normal command, a new State instance is created, and then we add this new State to the end of the linked list in HistoryStates. When an undo command is encountered, we simply remove the last node of the linked list, so the current state pointer points to the previous node. When there are no more nodes in the linked list except the initial state, the undo command cannot be executed and the HistoryStates will thrown a NoHistoryStatesException.

AddApp feature

Implementation

The feature allows users to create an appointment with any number of clients (Person), along with a location (Address), a time period (timePeriod) and a description (String). The addApp mechanism is facilitated by Schedule.

Schedule contains an Observable List of Appointment that we can add appointments to. These appointments will be generated from the inputs entered by the user using the AddAppCommand

Given below is an example usage scenario and how the addApp mechanism behaves at each step.

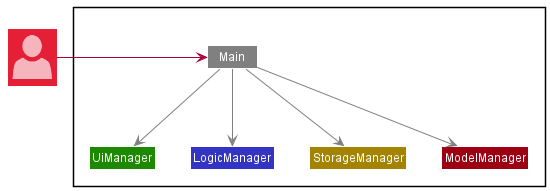

Step 1. The user launches the application. PlaceBook will be initialized with a LogicManager, a StorageManage, a UiManager and a ModelManager. StorageManager contains an ContactsStorage an a ScheduleStorage which manages the specific saved data. StorageManager will attempt to read data from a saved json file and loads the data into ModelManager when the class is initialized

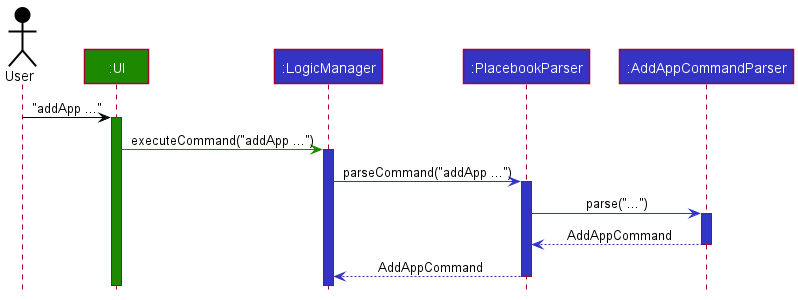

Step 2. The user inputs the addApp command with addApp id/1,2,3 a/Starbucks @ Raffles City start/01-01-2021 1400 end/01-01-2021 1500 ds/discuss marketing strategies The logicManager, which has been initialized with an PlacebookParser, will use that class to create and return an addAppCommand with the appropriate inputs to be executed by LogicManger

Step 3. On the execution of the command, the command will retrieve the list of persons and appointments from ModelManager and create a new UniquePersonList. The new UniquePersonList will then be populated with the appropriate client or clients retrieved from the list of persons according to the input index or indexes. A new Appointment will then be created and added to the ModelManager. It is at this stage the input will be checked to ensure that there are no duplicates or clashes with other appointments.

Step 4. After execution, the CommandResult is passed upwards to the UI so that it can return a status message and update the display to match the updated model

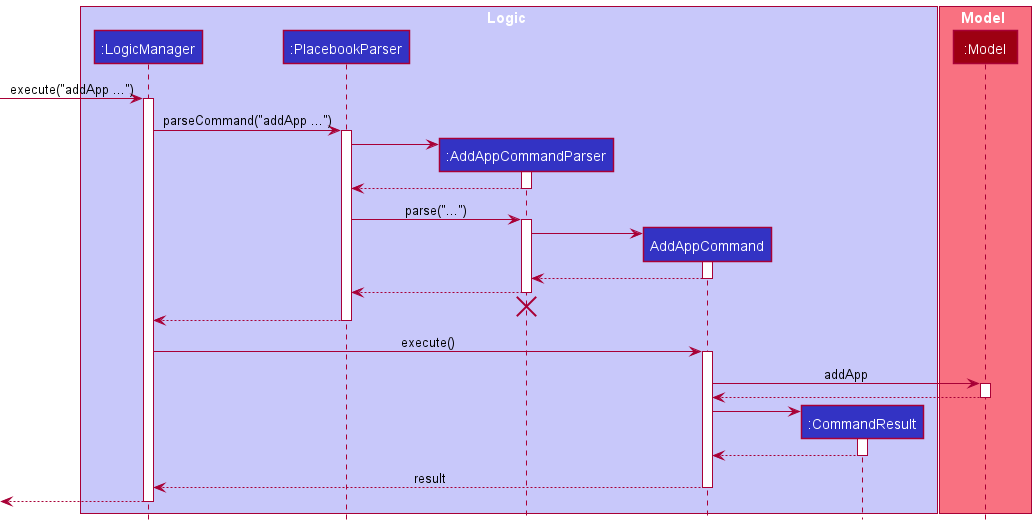

The following sequence diagram shows how the addAppCommand operation works:

Design considerations

• Alternative 1 (current choice): User selects Person in Appointment through indexes of the displayed list.
  • Pros: Easy to implement, every Person in the displayed list will have a unique index.
  • Cons: As the user filters the displayed list, the indexes may change and be re-ordered, causing some confusion to the user.
• Alternative 2: User selects Person in Appointment through the name field in Person
  • Pros: The user will have greater confidence that they are adding the correct person.
  • Cons: Longer command lines, especially if multiple Person added to the same Appointment. One spelling mistake in the name will cause an error. There the possibility that there are multiple Person with the same name.

Filter & Sort Feature

Implementation

Filtering

The feature allows users to filter using findApp . The input of the command will be passed down through the parser into the findAppCommand as a DescriptionContainsKeywordsPredicate, where on execution, this predicate is passed into the initialized ModelManager filters the list of Appointments by setting this predicate in a FilteredList of Appointments, updating it to be displayed by the UI.

Sorting

The feature allows sort using one of two metrics, time of appointment or description, and return to the original list. Using listApp Time or listApp Description will sort the list, and listApp will return the list of appointments to its original display. This is also done through the ModelManager. The parser will first determine what type of listApp is being input by the user, before passing it into listAppCommand. On execution, listAppComand will call ModelManager functions to sort the list according to input and update the displayed list to be displayed by the UI

Delete feature

Implementation

The delete feature deletes a person from the storage by specifying an index shown on the display list.

Design considerations

• This will likely be break the current data relations as those appointments that refer to this person will no longer be able to query information about this person.
• Thus, we either:
  1. implement a soft delete, which marks the data as ‘deleted’, so it will not be shown on the person list and keep showing information about the person in the related appointment.
  2. remove the person from related appointments and delete the appointment if it has no more related client
• We chose the second one, and gives a warning message to user when they try to delete. As we think that, it makes little sense in this case to keep the person related to appointments show up event after they delete the person. Moreover, it makes the code harder to maintain, as we will need to consider whether the person is mark as deleted for every other query.

Handle invalid JSON data feature

Implementation

This feature checks if there are errors in the JSON file formats. Below are the different situations that can occur and how it is resolved.

• If both files can be found and are valid, PlaceBook will use create ModelManager using the data in those files.

• If the contacts.json file is missing or invalid, PlaceBook will wipe both the Schedule and Contacts data, and create sample data for both.

• If the schedule.json file is missing or invalid, PlaceBook will wipe the Schedule data, but will not create a sample Schedule, so that there will not be discrepancies between Contacts and Schedule.

• If both files are missing or invalid, PlaceBook will create sample data for both Schedule and Contacts.

Design Considerations

• Alternative 1 Create sample data accordingly to the different situations mentioned above.
  • Pros: This will ensure that there are no appointments created that contain Person objects that are not in the contacts.
  • Cons: Have to consider many cases and how to handle them correctly.
• Alternative 2 Create sample data for each list, if their data file is missing or invalid.
  • Pros: Simpler logic and implementation.
  • Cons: May have discrepancies between the contacts and schedule, confusing the user.

Ensure no discrepancies between contacts and schedule upon loading ModelManager

Implementation

This feature checks that if the user had modified the JSON files, there will not be any discrepancies between contacts and schedule.

While loading ModelManager, PlaceBook checks if there any Appointment objects that contain Person objects that are not in the contacts.

Upon finding such Appointment objects, PlaceBook will add the missing Person objects back to the contacts.

Design Considerations

• Alternative 1 Add missing persons back to contacts
  • Pros: This will ensure that the user will not have unexpected missing data.
  • Cons: The user might not notice that the person that they wanted to delete is still in the contacts.
• Alternative 2 Delete appointments with missing persons
  • Pros: This will ensure that the persons the user deleted from the JSON will remain deleted.
  • Cons: The user might not have noticed that those appointments have been deleted.

Command History Navigation feature

The Command History Navigation feature allows the users to navigate through the previous or next input command. This is useful for repetitive tasks such as adding or deleting multiple appointments/clients.

Implementation

Successful user inputs are saved into the CommandHistory class, which keeps a List of String and a pointer. When the user presses UP/DOWN keys in the command box, the Keyboard event is triggered, which will call the :commandHistory::getLastInput and :commandHistory::getNextInput respectively. Then it will set the commandBox to the correct user input.

The implementation of getLastInput is such that when the user reaches the first input, and press UP, it will still show the first input. The implementation of getNextInput is such that when the user reaches the last input, and press DOWN, it will show empty string "".

Theme Change feature

The Theme Change feature allows users to change the theme of the GUI from light to dark.

Implementation

Stores the style information in separate .css files, such as darkTheme.css and lightTheme.css. Specifically, The use of global variables in the newly added lightTheme.css, improves maintainability and consistency of the style.

The App is loaded with a default theme, in v1.4, the lightTheme. Then the UiManager keeps a ThemeManager object, in which the theme information like the path to the stylesheet and the button image is stored. When the theme change button is pressed, the click event will call the changeTheme method in the themeManager, which will remove the previous stylesheet from the MainWindow and add the new stylesheet.

Moreover, other windows such as the deleteConfirmationWindow, can also get the current stylesheet by getCurrentStylesheet method

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• Marketing Professional
• Meets many people everyday
• Have to send a lot of emails
• has a need to manage a significant number of contacts
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: Our product aims to ease the process of adding many addresses every day, help to create template emails from the addresses and generate emails in batches for a target group of people. The product also keeps track of appointments and in the future, we look to potentially link to gmail.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	user	add a new person	have that person reflected in my contacts list
* * *	user	delete a person	remove entries that I no longer need
* * *	user	find a person by name	locate details of persons without having to go through the entire list
* *	user	find a person by tags	locate details of persons with relevant tags
* * *	marketeer	add appointments with clients	have that appointment reflected in my schedule
* * *	marketeer	delete appointments	remove cancelled/finished appointments
* *	marketeer	edit existing appointments	edit appointments in the event of changing details
* * *	new user	view some example contacts	have an idea of what contact info will look like
*	user with many persons in the contacts	sort persons by name	locate a person easily
*	user with many appointments	sort appointments by Description	locate an appointment easily
*	user	use the app in night mode	work late at night
* *	marketeer	list appointments with clients	view and plan my week and meet clients in a timely manner
* *	user	view my list of contacts	see who is already inside and contact clients that are forgotten
* *	user	find an appointment by name	locate details of an appointment without having to go through the list
* *	user	undo my commands	correct my mistakes quickly and easily
* *	user	edit a person	easily make changes to people in my contacts
* *	user	edit an appointment	easily make changes to appointments in my contacts

Use cases

(For all use cases below, the System is the PlaceBook(PB) and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add a person

MSS

1. User requests to add a new person.
2. PB adds the person.
3. PB displays success message and shows the updated list of persons.

Use case ends.

Extensions

• 1a. The command format is invalid.

  • 1a1. PB displays an error message, and gives an example of the correct format.

    Use case resumes on step 1.

• 1b. The input parameters are invalid.

  • 1b1. PB displays an error message, informing user what the valid input format should be.

    Use case resumes on step 1.

Use case: UC02 - List all persons

MSS

1. User requests to list all persons.
2. PB shows the list of persons.

Extensions

• 1a. The list is empty.

  • 2a1. PB informs the user that the list is empty.

    Use case ends.

Use case: UC03 - Edit a person

MSS

1. User requests to list persons(UC02).
2. User requests to edit a specific person in the list.
3. PB edits the person.
4. PB displays success message and shows updated list of persons.

Extensions

• 2a. The command format is invalid.

  • 2a1. PB displays an error message, and gives an example of the correct format.

    Use case resumes at step 2.

• 2b. The input parameters are invalid.

  • 2b1. PB displays an error message, informing user what the valid input format should be.

    Use case resumes at step 2.

Use case: UC04 - Delete a person

MSS

1. User requests to list persons(UC02).
2. User requests to delete a specific person in the list.
3. PB displays a pop-up window with asking for user confirmation to delete.
4. User confirms they want to delete.
5. PB deletes the person.

6. PB displays success message and shows updated list of persons.

   Use case ends.

Extensions

• 2a. The given index is invalid.

  • 2a1. PB displays an error message.

    Use case resumes at step 2.

• 4a. User indicates that they do not want to delete.

  Use case ends.

Use case: UC05 - Find persons by name

MSS

1. User inputs the find command with keywords to search for.

2. PB shows a list of persons whose names match the given keywords.

   Use case ends.

Extensions

• 1a. PB cannot find any matching Person.

  • PB displays an empty list.

    Use case ends.

Use case: UC06 - Find persons by tags

MSS

1. User inputs the find tags command with keywords to search for.

2. PB shows a list of persons whose tags match the given keywords.

   Use case ends.

Extensions

• 1a. PB cannot find any matching tags with any Person.

  • PB displays an empty list.

    Use case ends.

Use case: UC07 - Add appointment

MSS

1. User enters add appointment command specifying the index or indexes of persons, address, start and end DateTimes and description of the appointment.
2. PB adds the appointment.

3. PB displays success message and shows the updated list of appointments.

   Use case ends.

Extensions

• 1a. PB detects an error in command format.

  • 1a1. PB displays an error message, showing an example of the correct format.

    Use case resumes at step 1.

• 1b. PB detects an error in input format.

  • 1b1. PB displays an error message, informing user what the valid input format should be.

• 1c. PB does not have the specified person in the contact list.

  • 1c1. PB informs the user that the person does not exist.

    Use case ends.

• 1d. PB detects a collision in the time period of appointment to be added with previously added appointments.

  • 1d1. PB informs the user that there is a clash.

    Use case ends.

Use case: UC08 - List appointments

MSS

1. User enters the list appointments command.
2. PB displays a list of all currently added appointments.

Use case ends.

Extensions

• 1a. PB detects that there are no appointments added.

  • 1a1. PB informs the user that there are no appointments added yet.

    Use case ends.

Use case: UC09 - List appointments by Time

MSS

1. User requests to list the appointments sorted by time.
2. PB displays a list of all currently added appointments sorted by time.

Extensions

• 1a. PB detects that there are no appointments added.

  • 1a1. PB informs the user that there are no appointments added yet.

    Use case ends.

Use case: UC10 - List appointments by Description

MSS

1. User requests to list the appointments sorted by description.
2. PB displays a list of all currently added appointments sorted by description.

Extensions

• 1a. PB detects that there are no appointments added.

  • 1a1. PB informs the user that there are no appointments added yet.

    Use case ends.

Use case: UC11 - Delete appointment

MSS

1. User requests to list appointments (UC08).
2. User enters delete appointment command indicating the index of the appointment to be deleted.
3. PB displays a pop-up window with asking for user confirmation to delete.
4. User confirms they want to delete.
5. PB deletes the appointment and displays a successful message.

Use case ends.

Extensions

• 2a. PB detects that the inputted index is out of range.
  • 2a1. PB informs the user that the index is out of range.

  Use case resumes at step 2.

• 4a. User indicates that they do not want to delete.

  Use case ends.

Use case: UC12 - Edit an appointment

MSS

1. User requests to list appointments(UC08).
2. User requests to edit a specific appointment in the list.
3. PB edits the appointment.

4. PB displays success message and shows updated list of appointments.

   Use case ends.

Extensions

• 2a. The command format is invalid.

  • 2a1. PB shows an error message, and gives an example of the correct format.

    Use case resumes at step 2.

• 2b. The input parameters are invalid.

  • 2b1. PB shows an error message, informing user what the valid input format should be.

    Use case resumes at step 2.

Use case: UC13 - Find Appointment by description

MSS

1. User inputs the find command with keywords to search for.

2. PB shows a list of persons whose names match the given keywords.

   Use case ends.

Extensions

• 2a. PB cannot find any matching Person.

  • PB displays an empty list.

    Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 persons and appointments without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The system is not required to handle sending contacts emails.
5. Users can see previously written commands in the same session.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X

Commands

GeneralCommands

• ClearCommand
• ExitCommand
• HelpCommand

PersonCommands

• AddCommand
• DeleteCommand
• EditCommand
• FindCommand
• FindTagsCommand
• ListCommand

AppointmentCommands

• AddAppCommand
• DelAppCommand
• EditAppCommand
• FindAppCommand
• ListAppCommand

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Adding a person

1. Adding a person to the list of people

   1. Test case: add n/Susan p/90090099 e/susan@example.com a/serangoon t/Housewife
      Expected: New person Susan is added to the list. Details of the person will be as displayed in the UI under the person list, as well as the status message

   2. Test case: add n/Susan p/90090099 e/susan@example.com a/serangoon t/Housewife then add n/Susan p/90090099 e/susan@example.com a/serangoon t/Housewife again
      Expected: No person is added. Error details shown in the status message. Status bar remains the same.

   3. Other incorrect add commands to try: add, add Susan, add n/Susan and other incomplete add commands. Expected: Similar to previous.

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Adding an Appointment

1. Adding an Appointment to the list of Appointments

   1. Prerequisites: List all persons using the list command. At least two people in the list.

   2. Test case: addApp id/1 a/Starbucks @ Raffles City start/01-01-2021 1400 end/01-01-2021 1500 ds/discuss marketing strategies
      Expected: New Appointment discuss marketing strategies is added to the list. Details of the Appointment will be as shown in the UI under the Appointment list, and details of the person can be viewed as well. This will also be displayed in the status message.

   3. Test case: addApp id/1,2 a/Starbucks @ Nex start/01-01-2021 1500 end/01-01-2021 1600 ds/sell product
      Expected: New Appointment discuss marketing strategies is added to the list. Details of the Appointment will be as shown in the UI under the Appointment list, and details of the two people added can be viewed as well. This will also be displayed in the status message.

   4. Test case: addApp id/1 a/Starbucks @ Raffles City start/01-01-2021 1400 end/01-01-2021 1500 ds/discuss marketing strategies then addApp id/2 a/Starbucks @ Raffles City start/01-01-2021 1400 end/01-01-2021 1500 ds/sell product
      Expected: No Appointment is added due to clashing time period. Error details shown in the status message. Status bar remains the same.

   5. Other incorrect add commands to try: addApp, addApp Susan, addApp n/Susan and incomplete addApp commands. Expected: Similar to previous.

Deleting an Appointment

1. Deleting an Appointment while all Appointments are being shown

   1. Prerequisites: List all persons using the listApp command. Multiple Appointments in the list.

   2. Test case: delApp 1
      Expected: First Appointment is deleted from the list. Details of the deleted Appointment shown in the status message.

   3. Test case: delApp 0
      Expected: No Appointment is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delApp, delApp x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Editing an Appointment

1. Editing an existing Appointment while all Appointments are being shown

   1. Prerequisites: List all persons using the listApp command. Multiple Appointments in the list.

   2. Test case: editApp 1 a/Earth
      Expected: The appointment at index 1 will have its address changed to Earth. Details of the edited Appointment shown in the status message.

   3. Incorrect edit commands to try: editApp, editApp 1, editApp x a/address (where x is larger than the list size) editApp 1 edit and other incorrect edited inputs
      Expected: No Appointment is edited. Error details shown in the status message. Status bar remains the same
