User Guide

PlaceBook (PB) is a desktop app for managing contacts and appointments, optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI). If you can type fast, PB can get your contact management tasks done faster than traditional GUI apps.

It is most beneficial to Sales or Marketing staff who have to manage various appointments with potential clients and customers on a daily basis.

• Quick start
• Reading the document
  • Syntax and symbols
  • Data format
  • Additional notes
• Features
  • Contact Features
    • Adding a person: add
    • Listing all persons : list
    • Editing a person : edit
    • Locating persons by name: find
    • Locating persons by tags: findTags
    • Deleting a person : delete
  • Appointment Features
    • Adding an appointment: addApp
    • Editing an appointment: editApp
    • Deleting an appointment: delApp
    • Locating appointments by description: findApp
    • Listing all appointments : listApp
  • Other Features
    • Clearing all entries : clear
    • Undo the previous command : undo
    • Command history navigation
    • Viewing help : help
    • Changing Dark and Light Theme
    • Exiting the program : exit
    • Saving the data
    • Editing the data file
• FAQ
• Command summary

Quick start

1. Ensure you have Java 11 or above installed in your Computer.

2. Download the latest placebook.jar from here.

3. Copy the file to the folder you want to use as the home folder for your PlaceBook.

4. Double-click the file to start the app. The GUI similar to the below should appear in a few seconds. Note how the app contains some sample data.


5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the help window.
   Some example commands you can try:

   • list : Lists all contacts.

   • addn/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 : Adds a contact named John Doe to the PlaceBook.

   • delete3 : Deletes the 3rd contact shown in the current list.

   • clear : Deletes all contacts.

   • exit : Exits the app.

6. Refer to the Features below for details of each command.

Reading the document

This purpose of this section is to provide you with definitions of syntax, data formats that would be used in the next section Features which contains detailed information on all the commands provided in PlaceBook.

Syntax and symbols

The table below contains definitions of syntax used in the command format.

Data format

The table below contains definitions of data formats used in various parameters in the command format.

Additional notes

• Parameters can be in any order.
  e.g. if the command specifies n/NAME p/PHONE_NUMBER, p/PHONE_NUMBER n/NAME is also acceptable.

• If a parameter is expected only once in the command, but you specified it multiple times, only the last occurrence of the parameter will be taken.
  e.g. if you specify p/12341234 p/56785678, only p/56785678 will be taken.

• Extraneous parameters for commands that do not take in parameters (such as help, list, exit and clear) will be ignored.
  e.g. if the command specifies help 123, it will be interpreted as help.

• If there is any error in command format, PlaceBook will notify you and show you the correct format, and provide an example.

• Some commands will have some command specific errors, which will be elaborated on in Features, to help you troubleshoot.

Features

Contact Features

This section contains information on features related to adding contacts to the contact list.

Adding a person: add

Adds a person to the PlaceBook.

Format: add n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS [t/TAG]…​

Tip: A person can have any number of tags (including 0)

Examples:

• add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01
• add n/Betsy Crowe t/friend e/betsycrowe@example.com a/Newgate Prison p/1234567 t/criminal

Error Messages:

• Emails should be of the format local-part@domain…
  • This error occurs when an invalid email format is entered.
  • Please enter the correct email format, e.g. Johnny@gmail.com.
• Tag names should be alphanumeric
  • There may be some special characters in the tag input, e.g.!@#*
  • There should be no spaces in tags, e.g. close friend, is invalid.

Listing all persons : list

Shows a list of all persons in the PlaceBook.

Format: list

Editing a person : edit

Edits an existing person in the PlaceBook.

Format: edit INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [t/TAG]…​

• Edits the person at the specified INDEX. The index refers to the index number shown in the displayed person list. The index must be a positive integer 1, 2, 3, …​
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.
• When editing tags, the existing tags of the person will be removed i.e. adding of tags is not cumulative.
• You can remove all the person’s tags by typing t/ without specifying any tags after it.

Examples:

• edit 1 p/91234567 e/johndoe@example.com Edits the phone number and email address of the 1st person to be 91234567 and johndoe@example.com respectively.
• edit 2 n/Betsy Crower t/ Edits the name of the 2nd person to be Betsy Crower and clears all existing tags.

Error Messages:

• Emails should be of the format local-part@domain…
  • This error occurs when an invalid email format is entered.
  • Please enter the correct email format, e.g. Johnny@gmail.com.
• Tag names should be alphanumeric
  • There may be some special characters in the tag input, e.g.!@#*
  • There should be no spaces in tags, e.g. close friend, is invalid.
• The person index provided is invalid.
  • The index inputted may be out of the range of the displayed list indexes.

Locating persons by name: find

Finds persons whose names contain any of the given keywords.

Format: find KEYWORD [MORE_KEYWORDS]

• The search is case-insensitive. e.g. hans will match Hans
• The order of the keywords does not matter. e.g. Hans Bo will match Bo Hans
• Only the name is searched.
• Only full words will be matched e.g. Han will not match Hans
• Persons matching at least one keyword will be returned (i.e. OR search). e.g. Hans Bo will return Hans Gruber, Bo Yang

Examples:

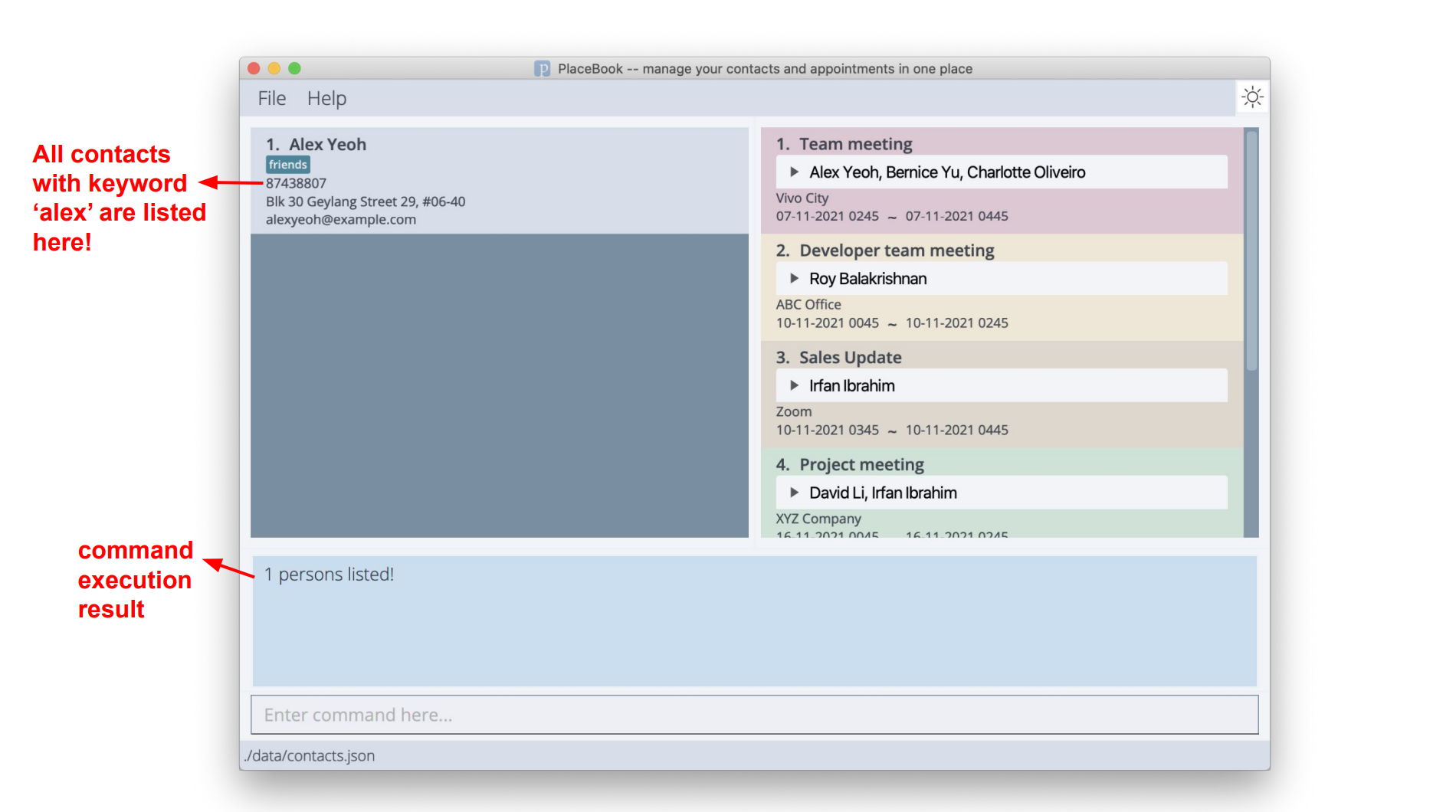

• find alex returns Alex Yeoh


Locating persons by tags: findTags

Finds persons whose tags contain any of the given keywords.

Format: findTags KEYWORD [MORE_KEYWORDS]…​

• The search is case-insensitive. e.g. fRieNds will match friends
• Only the tags are searched.
• Only full words will be matched e.g. colleague will not match colleagues
• Persons matching at least one tag keyword will be returned (i.e. OR search). e.g. friends colleagues will return persons with either friends, colleagues or both tags

Examples:

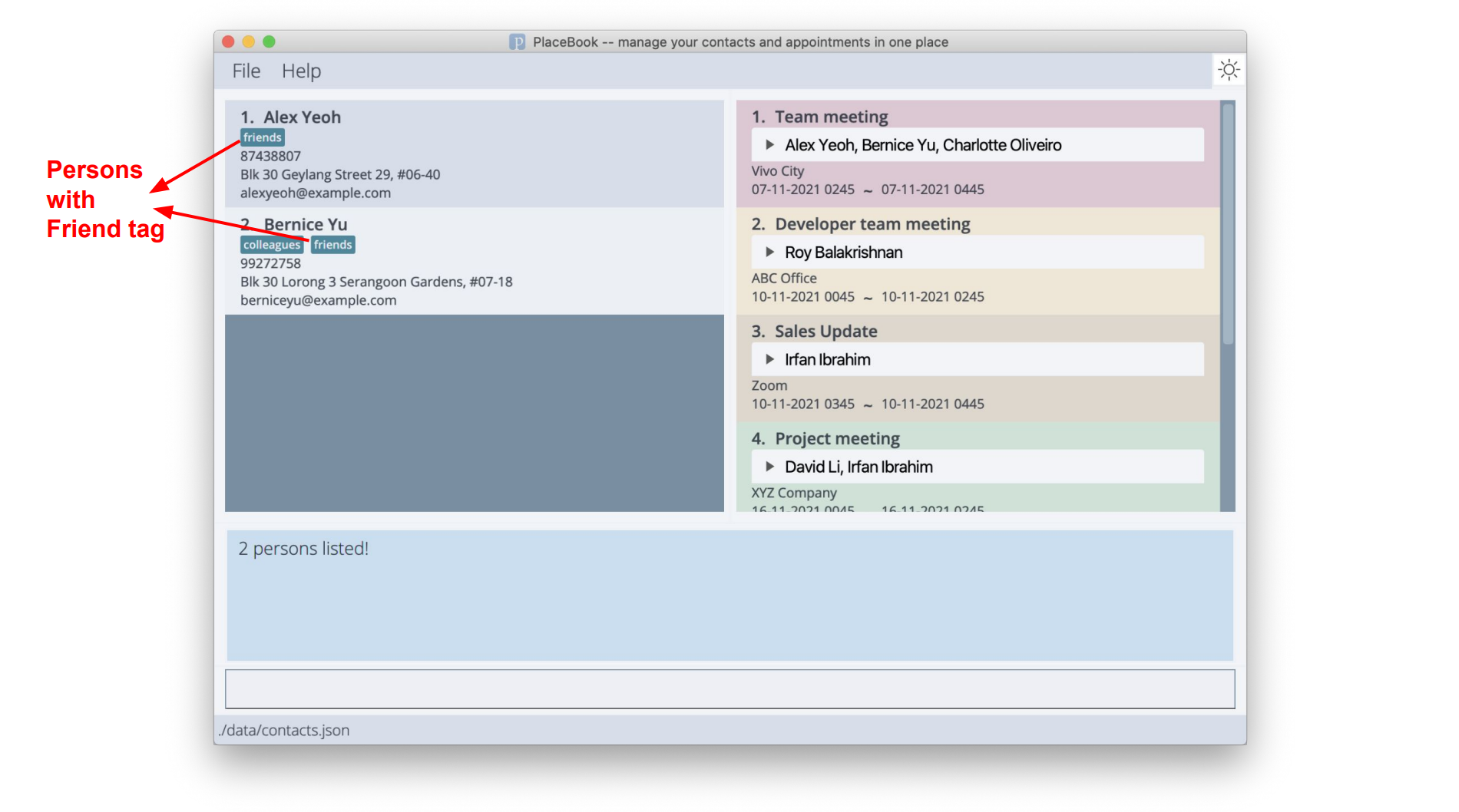

• findTags friends returns Alex Yeoh and Bernice Yu, who both have the friends tag

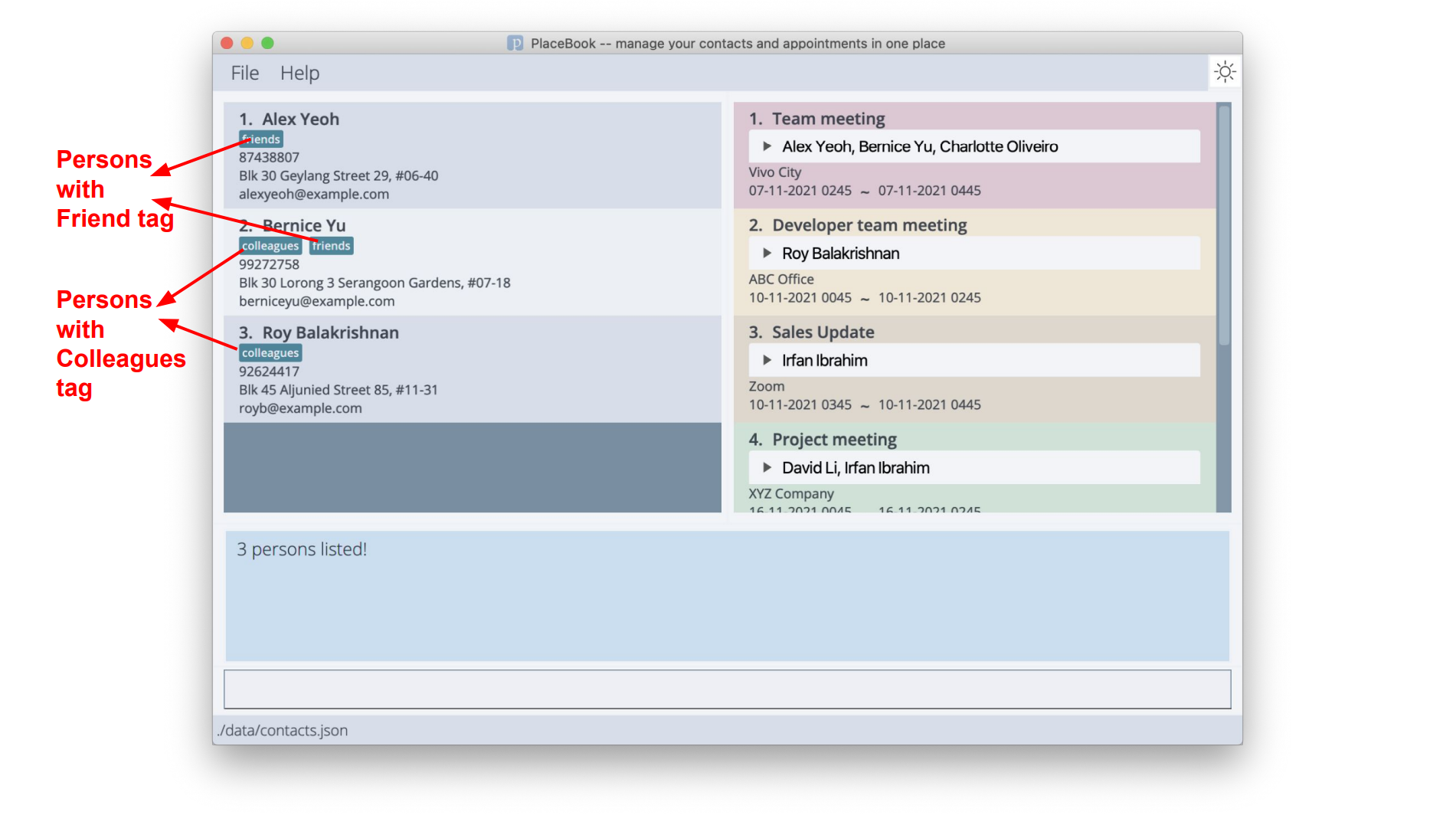

• findTags friends colleagues returns Alex Yeoh, Bernice Yu and Roy Balakrishnan, who all have either one or both of the friends and colleagues tags

Deleting a person : delete

Deletes the specified person from the PlaceBook.

Format: delete INDEX

• Deletes the person at the specified INDEX.
• The index must be a positive integer 1, 2, 3, …​

Error messages:

• The person index provided is invalid.
  • The index inputted may be out of the range of the displayed list indexes.

Note: The index refers to the index number shown in the displayed person list.

Examples:

• list followed by delete 2 deletes the 2nd person in the PlaceBook.
• find Betsy followed by delete 1 deletes the 1st person in the results of the find command.

Appointment Features

This section contains information on features related to adding appointments to the appointment list.

Adding an appointment: addApp

Adds an appointment for the specified person or persons identified using a list of index(es) with the datetime field(dd-MM-yyyy HHmm), with time being in the 24-hour format e.g. 1530, and description to the appointment list.

Format: addApp id/INDEX[INDEX,INDEX,INDEX…​] a/ADDRESS start/DATETIME end/DATETIME ds/DESCRIPTION

Examples:

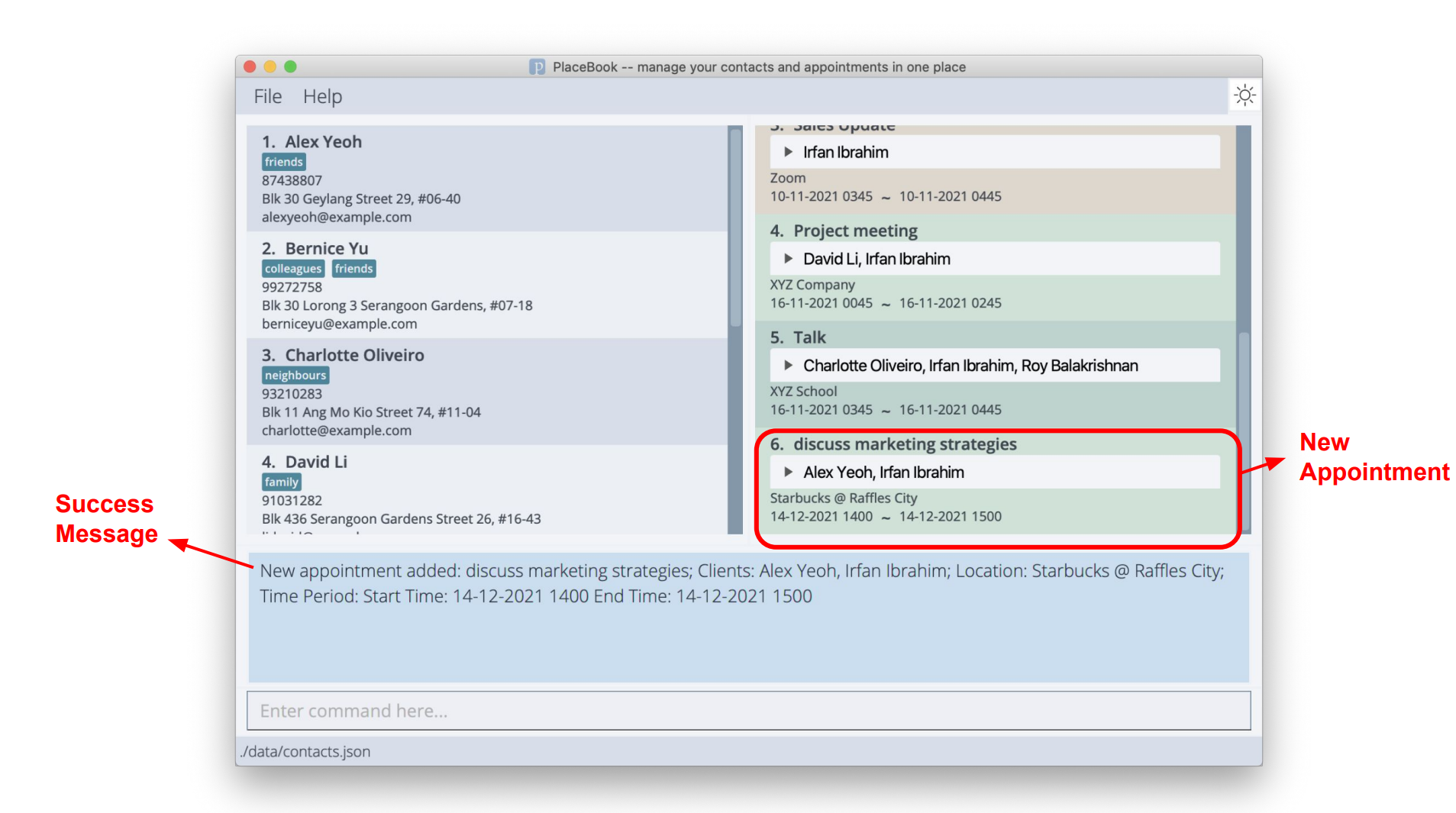

• addApp id/1,5 a/Starbucks @ Raffles City start/14-12-2021 1400 end/14-12-2021 1500 ds/discuss marketing strategies creates an appointment with Alex Yeoh and Irfan Ibrahim on 14-12-2021 at 1400 hrs to discuss marketing strategies

Error messages:

• The person index provided is invalid.
  • The index inputted may be out of the range of the displayed list indexes.
• DateTime format should be “dd-MM-yyyy HHmm”
  • A common error would be not putting a 0 before numbers less than 10, e.g. 3rd March 2022 9.05 am should be represented as 03-03-2022 0905.
  • Ensure there is a space between the date section and the time section.
• Clashing appointment Timings
  • The appointment you are trying to add clashes with an existing appointment.

Editing an appointment: editApp

Edits an appointment in PlaceBook.

Format: editApp INDEX [a/ADDRESS] [start/DATETIME] [end/DATETIME] [ds/DESCRIPTION]

• Edits the appointment at the specified INDEX.
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.
• The persons in the appointment will remain the same.

Examples:

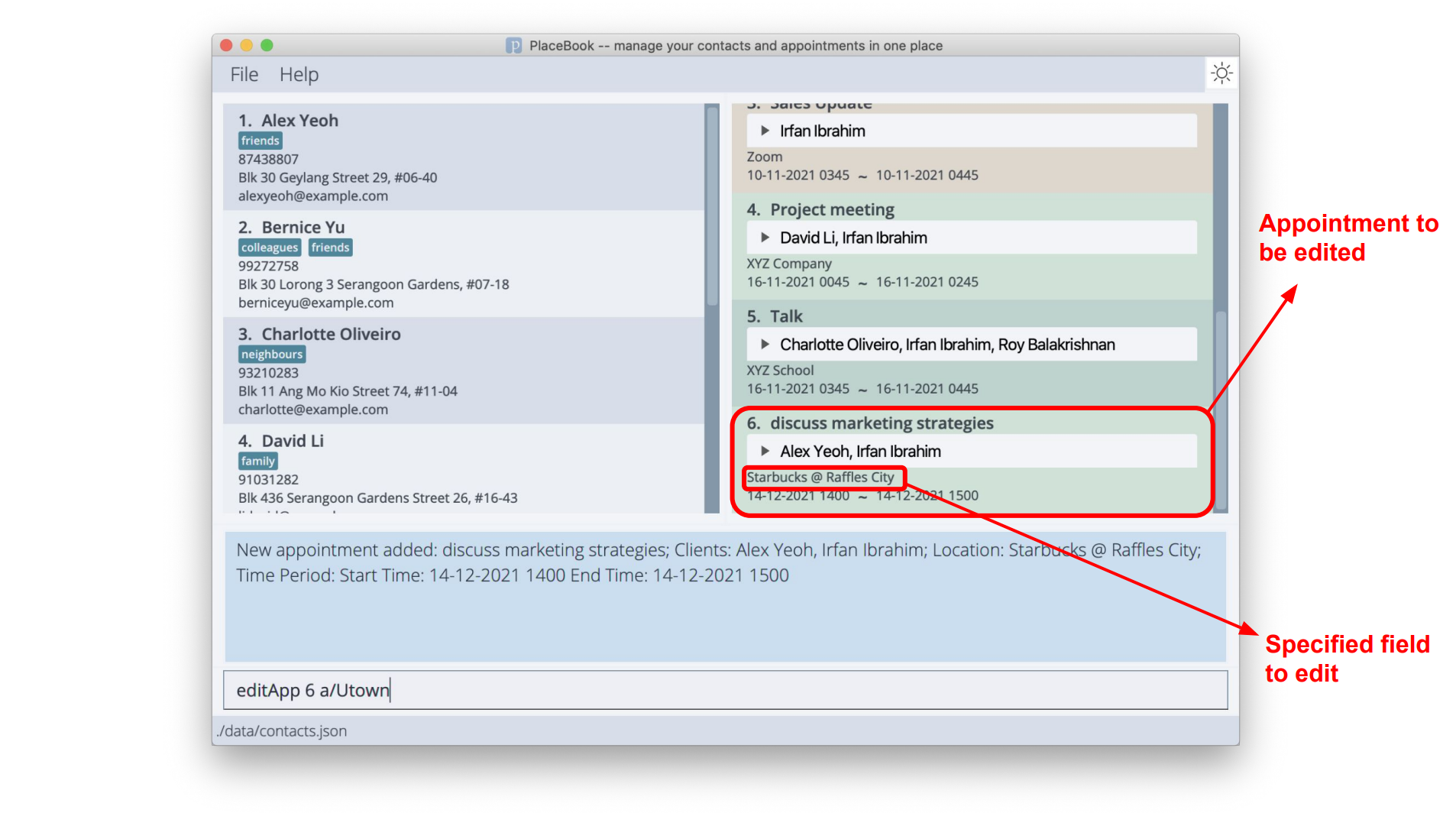

• editApp 6 a/Utown edits the details of a prior created group appointment, changing it to meet at UTown, while the other fields remain the same

Before:

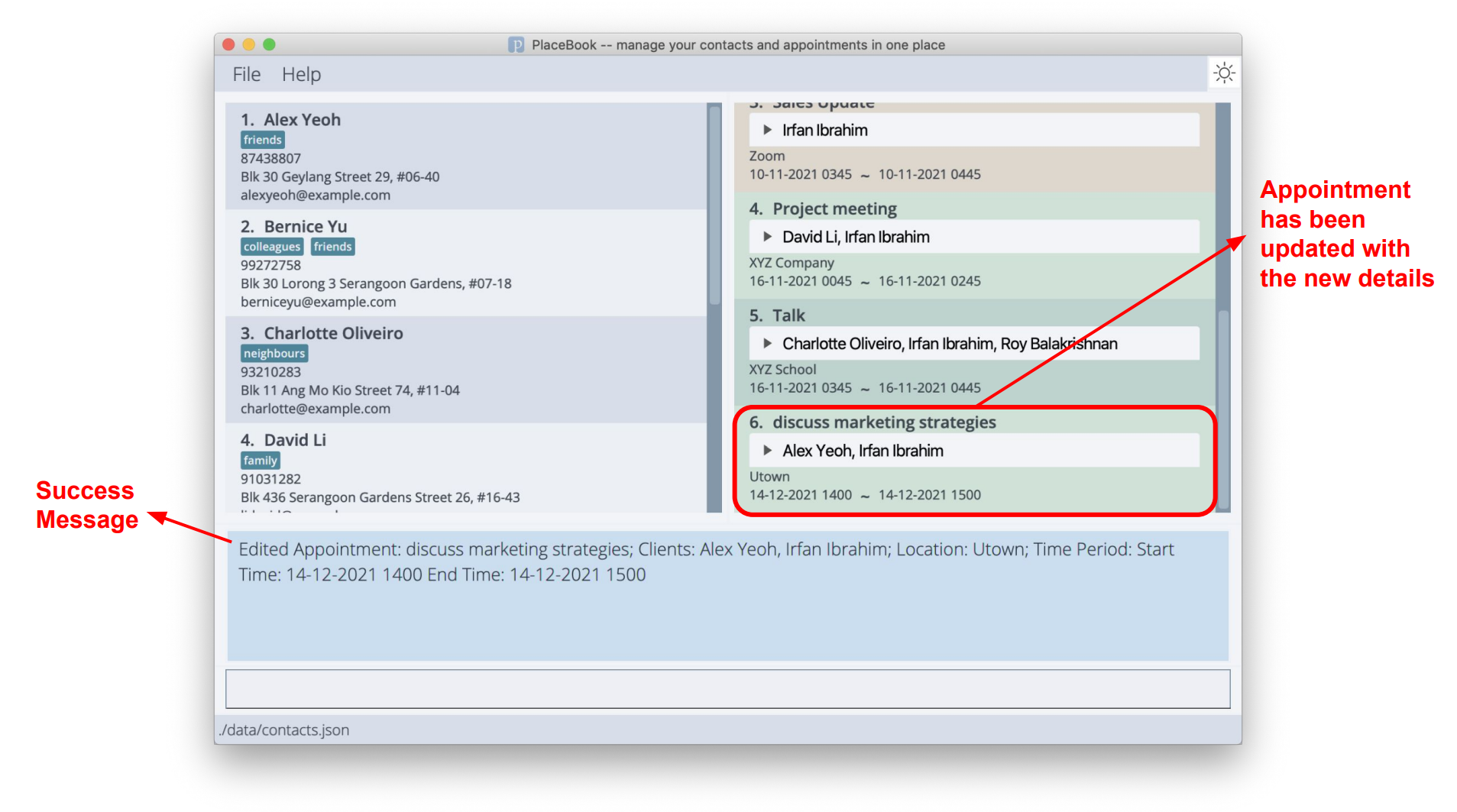

After:

Error messages:

• The appointment index provided is invalid.
  • The index inputted may be out of the range of the displayed list indexes.
• DateTime format should be “dd-MM-yyyy HHmm”
  • A common error would be not putting a 0 before numbers less than 10, e.g. 3rd March 2022 9.05 am should be represented as 03-03-2022 0905.
  • Ensure there is a space between the date section and the time section.
• Clashing appointment Timings
  • The appointment timing you are trying to edit clashes with an existing appointment.
• End time before Start time
  • The appointment timing you are trying to edit has an End time which is earlier than the Start time.

Deleting an appointment: delApp

• Deletes an appointment at the specified INDEX
• A popup will appear asking for confirmation before actually deleting the appointment.
• If the user chooses to cancel the deletion, the appointment will not be deleted.
• The index refers to the index number shown in the displayed person list.
• The index must be a positive integer 1, 2, 3, …​

Format: delApp INDEX

Examples:

• delApp 6 and the user selects ‘OK’ in the popup

Error messages:

• The appointment index provided is invalid.
  • The index inputted may be out of the range of the displayed list indexes.

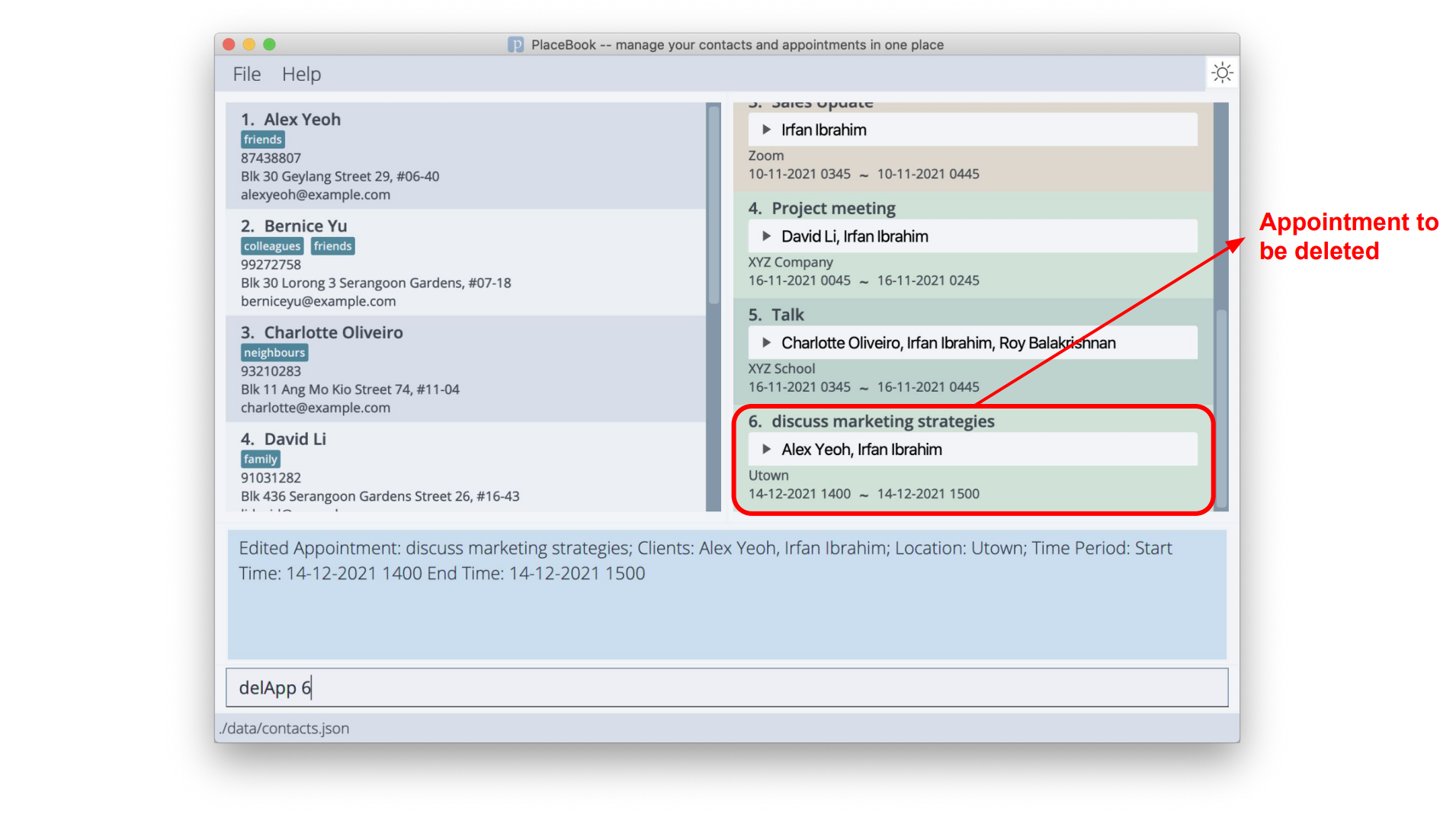

Before:

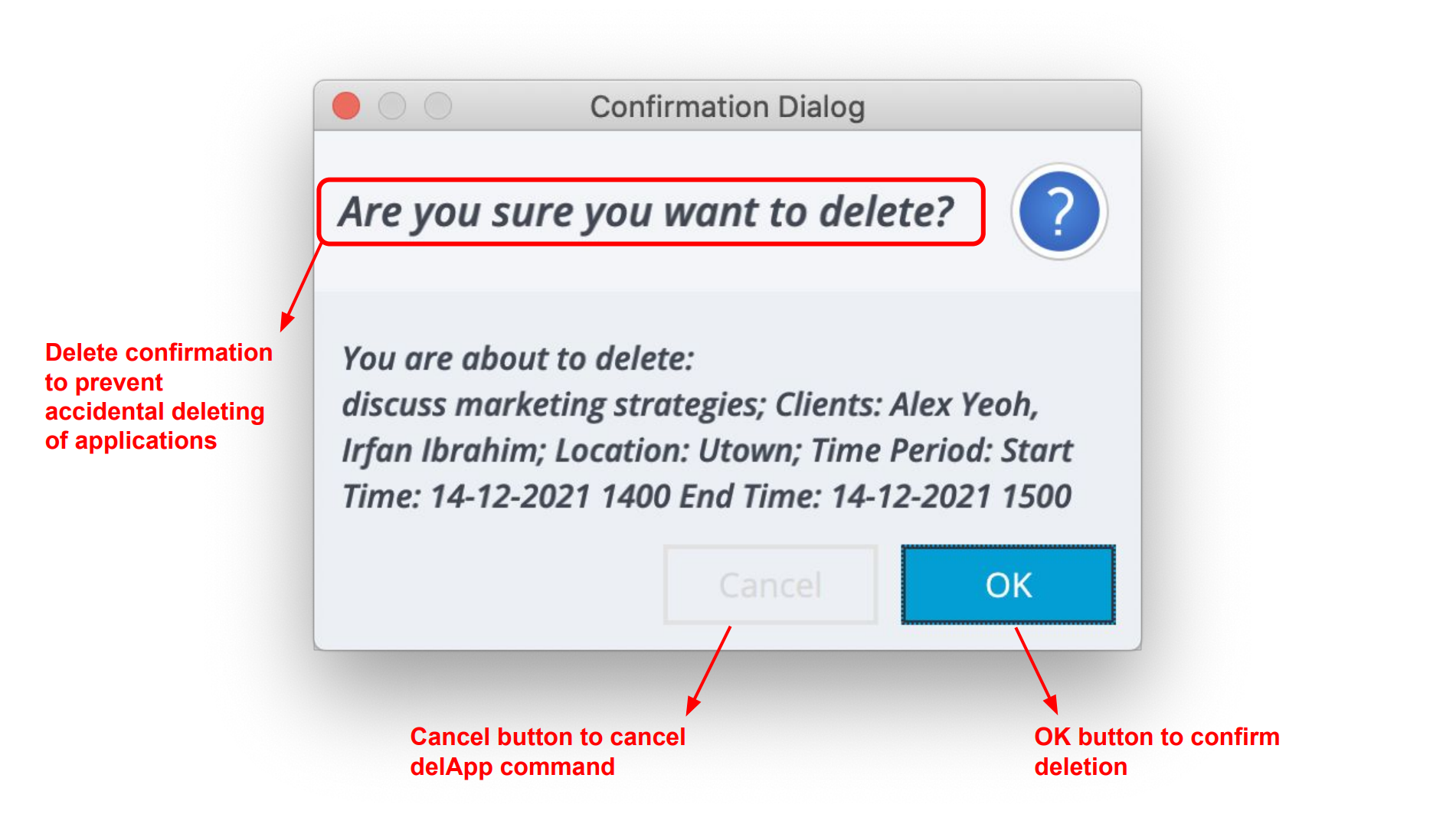

Confirmation:

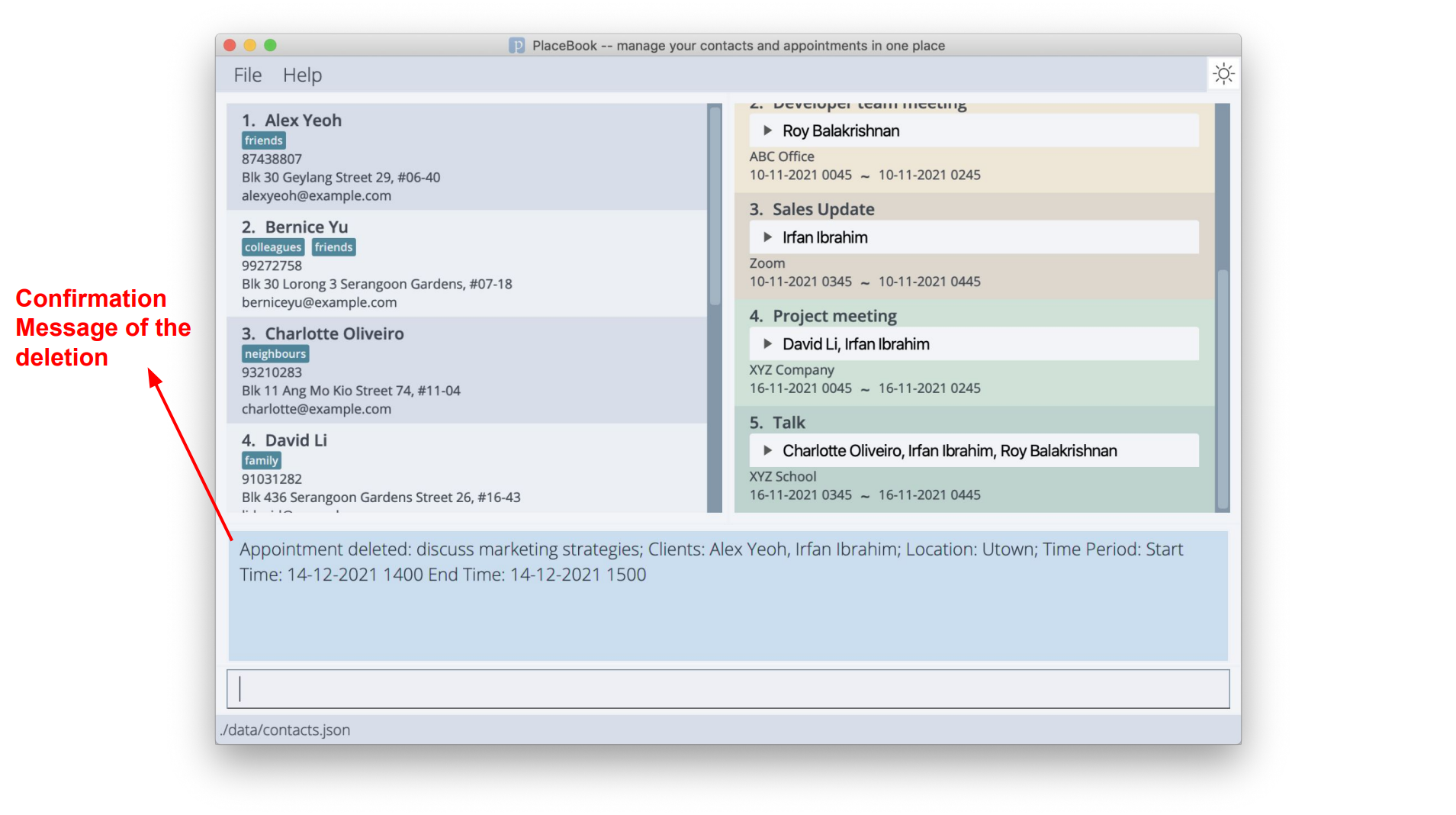

After:

Locating appointments by description: findApp

Finds appointments whose descriptions contain any of the given keywords.

Format: findApp KEYWORD [MORE_KEYWORDS]

• The search is case-insensitive. e.g. meeting will match Meeting
• The order of the keywords does not matter. e.g. Meeting online will match online meeting
• Only the description is searched.
• Only full words will be matched e.g. meet will not match meeting
• Appointments matching at least one keyword will be returned (i.e. OR search). e.g. Zoom meeting will return Zoom talk, offline meeting

Examples:

• findApp zoom returns Zoom and Zoom meeting
• findApp meeting talk returns sales talk, urgent meeting


Listing all appointments : listApp

Show all the appointments in the appointment list currently. List is sorted by Date, Time and Description baseline. Can optionally add a condition to sort List by, if an invalid condition is input, it will sort by baseline conditions

Format: listApp Optional: listApp Time or listApp Description

Other Features

Clearing all entries : clear

Clears all contacts and appointments from PlaceBook.

Format: clear

Undo the previous command : undo

If you execute a command by mistake, such as accidentally deleting a person or an appointment, you can easily undo this command and go back to where you were before executing that command by typing undo in the text box and pressing enter.

Format: undo

Error messages:

• No history states.
  • It means there are no more commands to undo, and you are at the initial state.

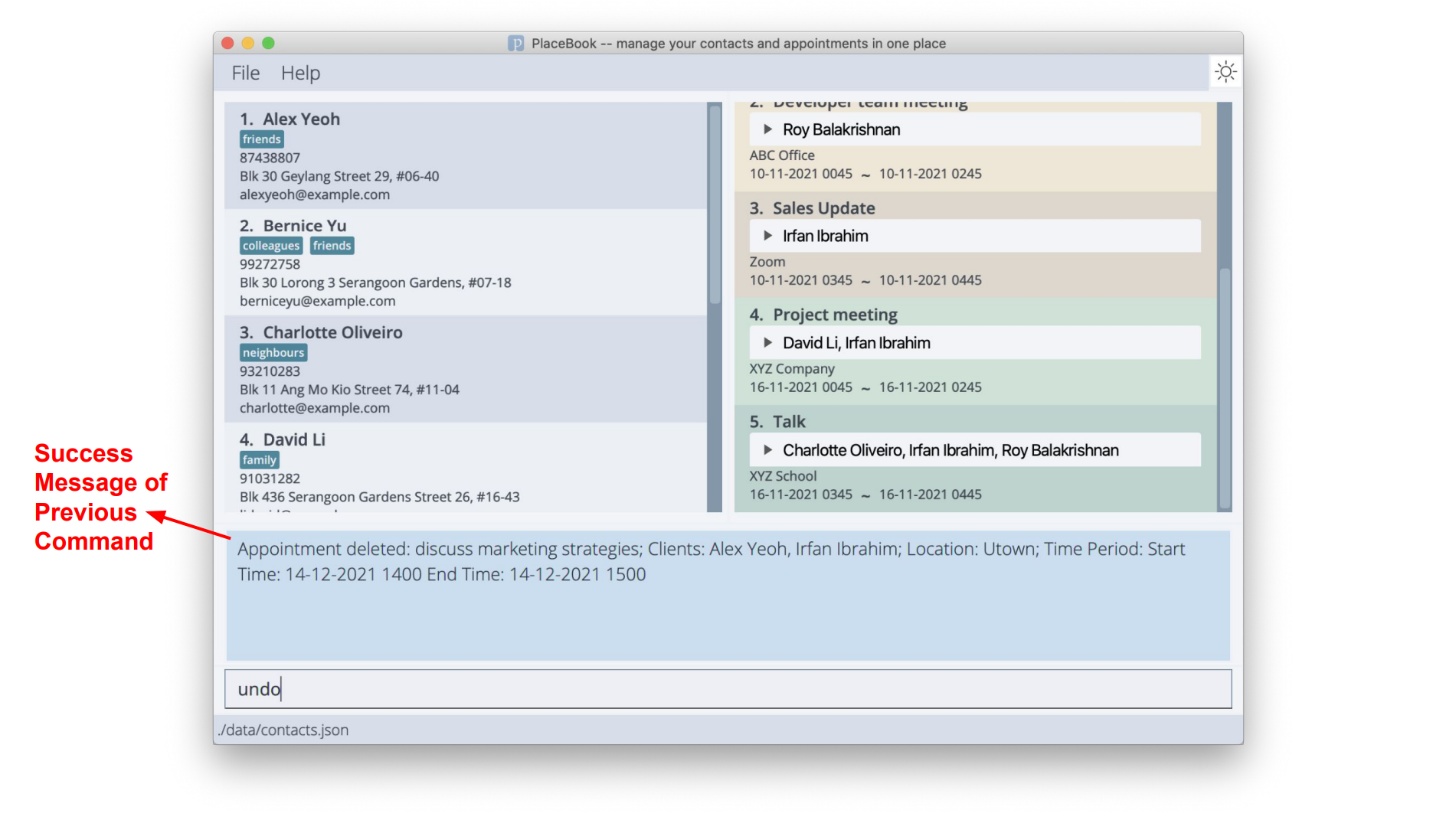

Before:

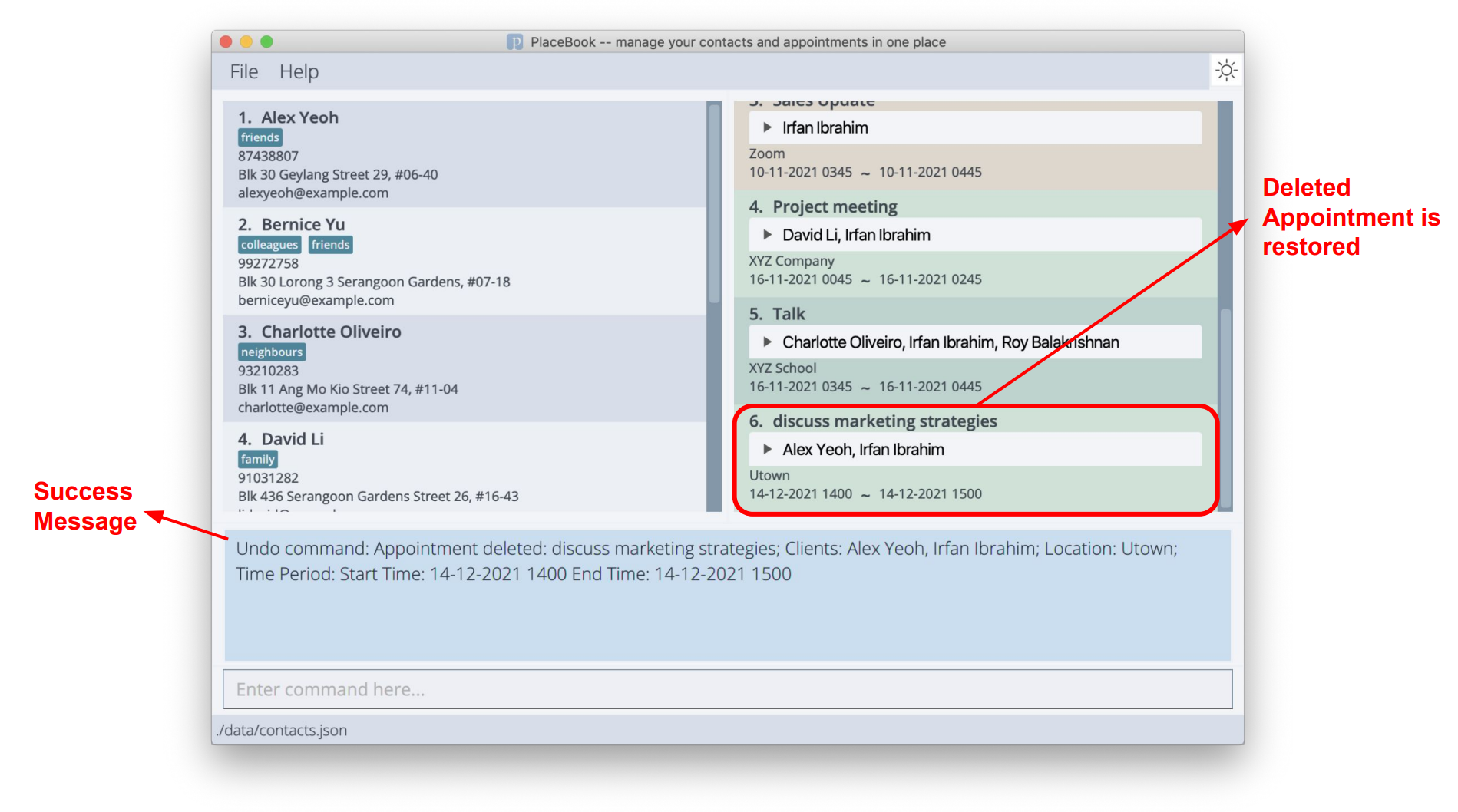

After:

Command history navigation

Using the keyboard UP and DOWN arrow buttons, you can easily navigate through the command that you previously entered. This can be very helpful when you are doing repetitive task such as adding multiple person or appointment.

Tip: Please note that the command history will not be saved in the data file. So you will not be able to get your command history if you exit PlaceBook and open it again.

Viewing help : help

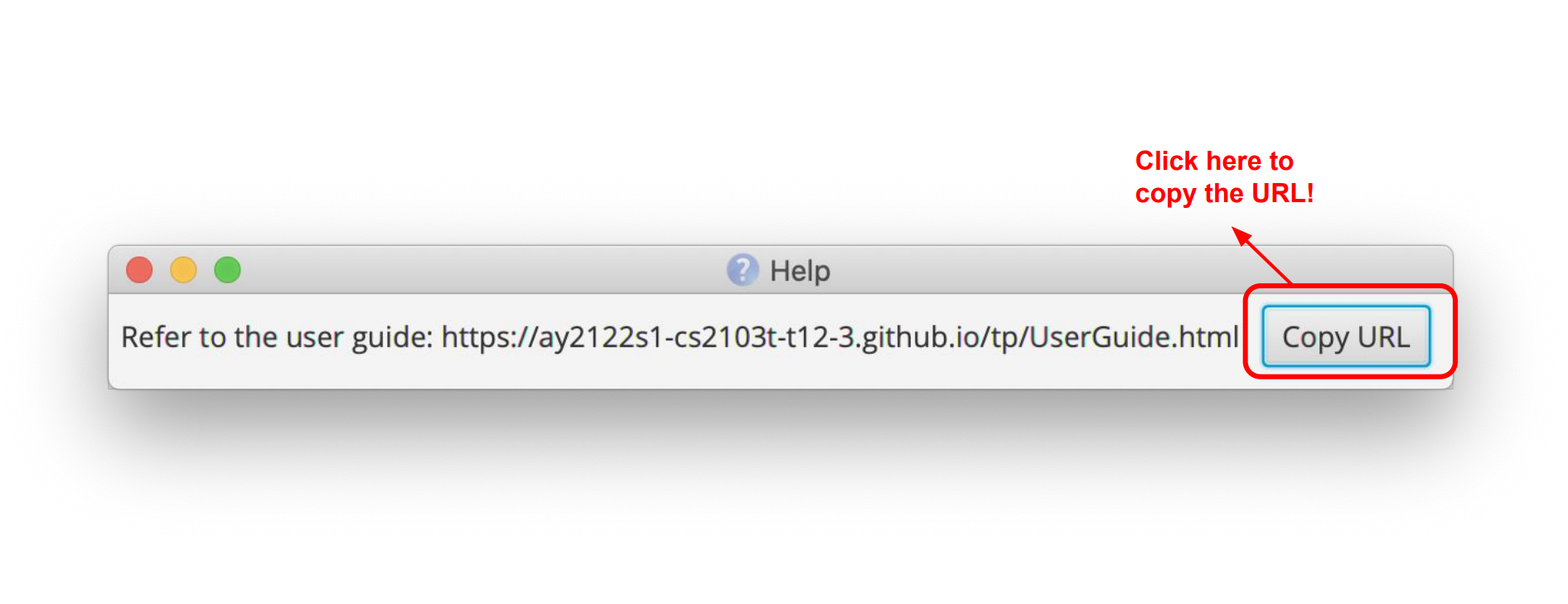

Shows a message explaining how to access the help page.

Format: help

Changing Dark and Light Theme

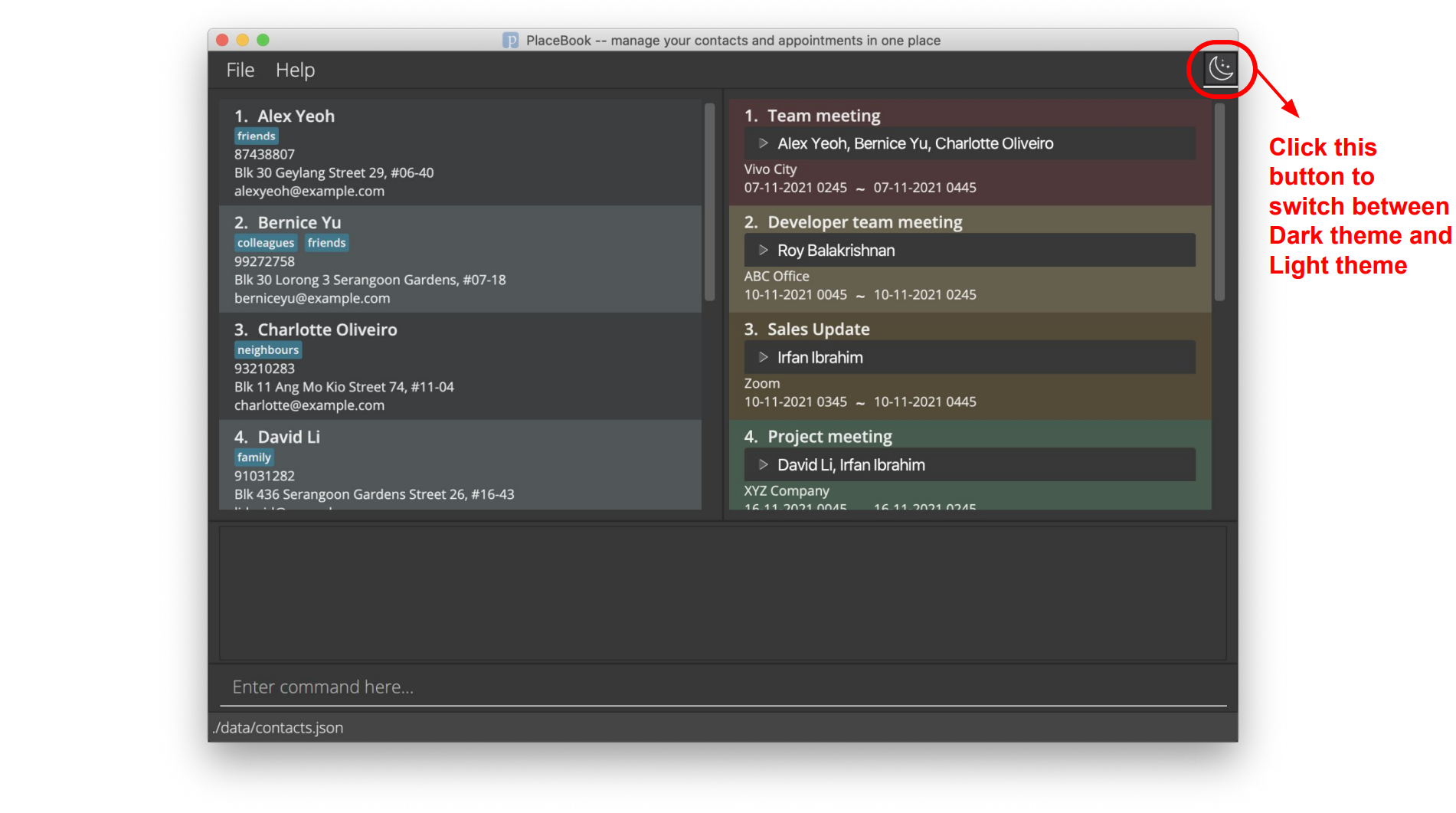

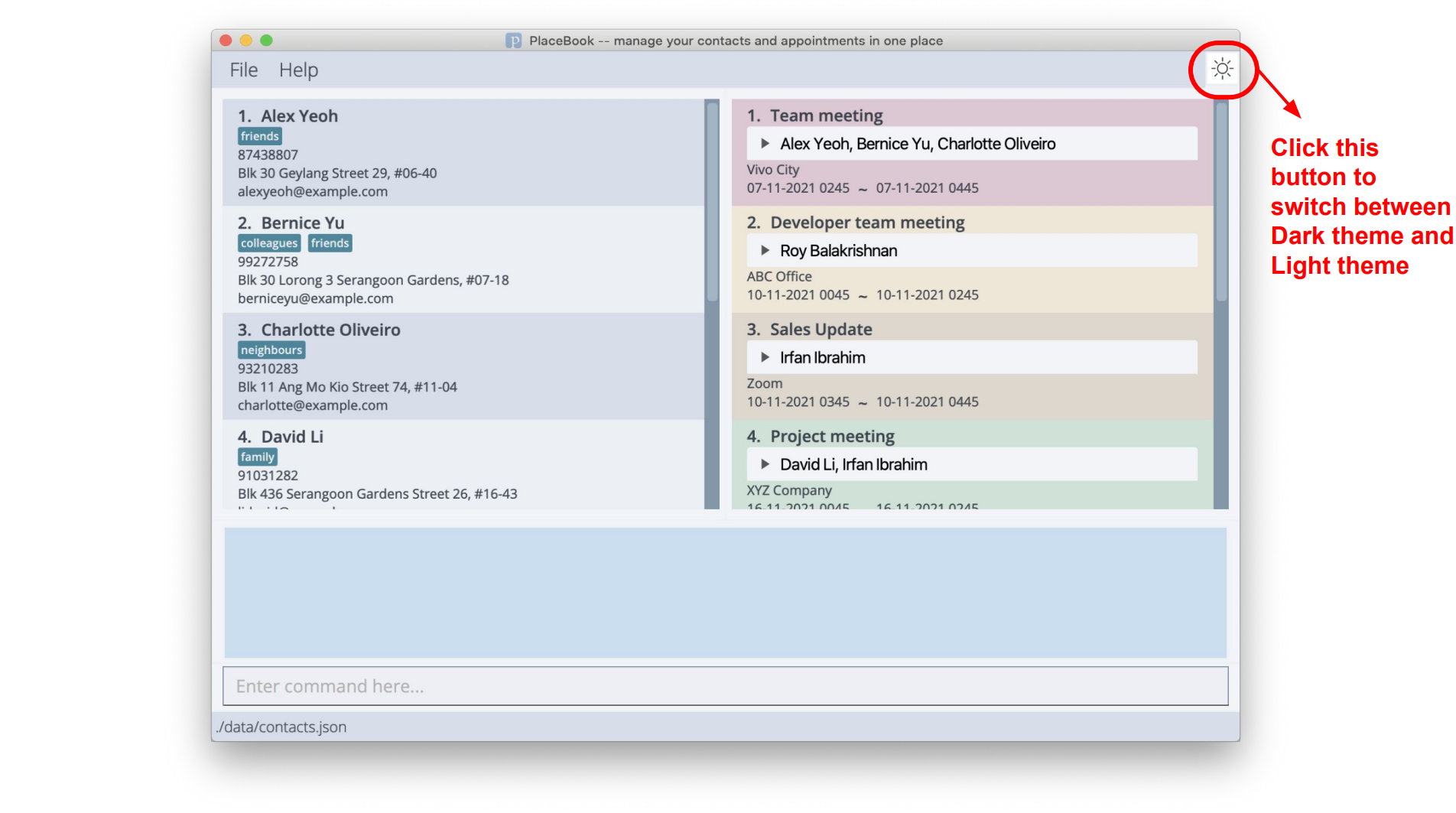

You may notice the ‘sun’ or ‘moon’ button located at the top right of PlaceBook. Simply click that to toggle PlaceBook between Dark and Light Theme. PlaceBook aims to support your work in different lighting environments and boost your productivity.

Light Theme Dark Theme

Exiting the program : exit

Exits the program.

Format: exit

Saving the data

PlaceBook data will be saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing the data file

Advanced users are welcome to update data directly by editing that data file. PlaceBook Person and Appointment data will be saved in two separate JSON files, locations in the table below.

Take Note: If you delete a person which is still contained in appointments, PlaceBook will add that person back to the contacts upon start-up.

Caution: If your changes to the data file makes its format invalid, PlaceBook will discard all data and start with an empty data file at the next run.
Invalid changes include creating duplicate entries in any of the JSON files, or creating Appointments with time conflicts in the schedule.json file

Caution: In the case that PlaceBook cannot find any data files, PlaceBook will attempt to create Sample data for the user.
If the schedule.json file is missing but the contacts.json file is correctly read, there will not be any Sample schedule made.
In all other cases (i.e. both files missing, or only contacts.json missing), both Sample contacts and Sample schedule will be created.

FAQ

Q: How do I transfer my data to another Computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous PlaceBook home folder.

Q: Will I be notified if I edit an appointment and the timing clashes with another appointment?
A: Yes, there will be a message saying that there is an existing conflicting appointment.

Q: Can I still use my mouse when using PlaceBook?
A: Yes, you are still able to use your mouse for certain functionalities such as scrolling lists.

Q: Is there a way for me to share my PlaceBook data with other people?
A: Yes, similarly to how you transfer data from one computer to another, you can simply send the data file to others, and then get them to download another PlaceBook jar file, then replace the data file with the one you sent.

Q: Is there a way we can see all our appointments in a calendar grid view?
A: We do not currently have a calendar view function, but we are looking into implementing it in the future. However, we remain adamant that Listview is better than Calenderview because it allows all appointments to be seen clearly at one centralized place.

Command summary
